3.0mm Shiny dull 5bars 3003 5052 Aluminium Propellor Plate 1.6 x
1200 x 2400 diamond aluminum checker stair tread plates

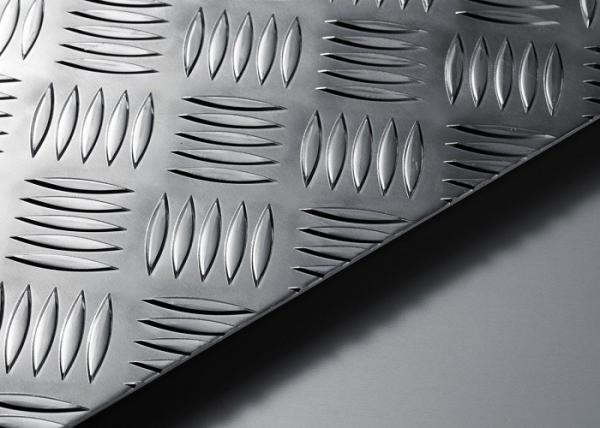

Propeller plate is a high shine plate with an embossed pattern
resembling an airplane propeller (hence the name). Made in a light
soft alloy, it is used for cladding and a wide range of decorative
purposes. It is often used for trimming cars, utes and vans because
of its highly polished finish
Propeller plate somehow also called tread plates, aluminum checker
plates, anti-slip stair tread plates,which have different patterns
on surface,but mostly customer interest to buy 5 bars aluminum
tread plates, diamond tread plates.
Shiny or dull 5 bars aluminum propellor plate 1.6 x 1200 x 2400mm
in alloy grade 5052 or 3003 is to make trailors, tool box or
canopies, and steps, decorative floor plates.
Aluminum Sheet 5052-H32 offers high workability, strength, corrosion resistance, and it
can be easily welded
Aluminium alloy 5052 in H32 temper has very good corrosion resistance to seawater and marine
and industrial atmosphere. It also has very good weldability and
good cold formability. It is a medium to high strength alloy with a
strength slightly higher than 5251 and a medium to high fatigue
strength.
Alloy 5052-H32 aluminum diamond plate has a range of useful properties:
Decorative Finish | Hard Wearing | Non-Slip | Corrosion Resistant |
Low Maintenance | Anti-Static | Light-weight
Amongst the applications for Alloy 5052 diamond plate are:
Treadplate | Boilermaking | Containers | Nameplates| Road Signs |
Architectural Paneling | Welded Tubes | Chemical Industry |
Irrigation | Desalination units | Pressure Vessels | Rivets
we carry a wide variety of sheet and plate metal products for your
project requirement needs. Our aluminum sheet plate is constructed
out of the finest sheet plate raw materials, is corrosion resistant
and offers high fatigue strength. Aluminum sheet plate also
provides excellent workability and is available in several
different grades and styles.
3003 H22 Diamond Tread Plate - This has the same properties as the
standard 3003 aluminum with the raised tread pattern to improve
traction. This is very commonly used for tool boxes, wall panels,
flooring, truck bed liners and trim, garage and workshop
outfitting, step plates and any other application that needs the light weight and strength of 3003
aluminum with increased traction of the raised tread pattern.
Our selection of aluminium checker plates are ideal for a number of
applications in many industries, ranging from food processing to
manufacturing vehicles and marine equipment.
They are easy to clean and their raised pattern creates an
anti-slip effect which lends them well to being used for flooring,
stairs and walkways in industrial settings and transportation. They
are also popular for cladding and protecting walls, where their
decorative panel stands out.
You can choose from a variety of sheet sizes and thicknesses. If
you’d like a particular size, which we don’t stock as standard,
we’ll cut you a plate to your specifications.
Aluminium has a range of qualities which make it incredibly
versatile, such as its corrosive resistance. Plus, because it’s
easy to recycle aluminium without reducing its quality, it’s an
incredibly environmentally friendly material to use.
When you buy from us, you can be sure you are getting a quality
product because we only source our supplies from reputable mills.
What’s more, we offer incredibly competitive prices too. Contact us
today to find out more.
Aluminum stair tread sheet, Aluminum tread Brite plate,Aluminum
checker plate manufacturers, Perforated aluminum sheet
china,Diamond sheet manufacturers, Aluminum tread plate
manufacturers
| Chemical Analysis of aluminum alloy Plate |
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | - | 0.05 | 0.03 | Remains |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | - | - | - | - | - | Remains |
| 1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | - | - | - | - | Remains |
| 1100 | 0.95 | 0.95 | 0.05-0.2 | 0.05 | - | - | 0.1 | - | - | Remains |
| 1200 | 1 | 1 | 0.05 | 0.05 | - | - | - | 0.1 | 0.05 | Remains |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | - | - | 0.1 | - | Remains |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.1 | - | 0.25 | - | Remains |
| 5042 | 0.2 | 0.35 | 0.15 | 0.2--.5 | 3.0-4.0 | 0.1 | - | 0.25 | 0.1 | Remains |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | - | 0.1 | - | Remains |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | - | 0.25 | - | Remains |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | - | 0.2 | - | Remains |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | - | 0.25 | - | Remains |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45 | 0.1 | - | 0.1 | - | Remains |
| 6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1.0 | 0.6-1.2 | 0.25 | - | 0.2 | - | Remains |
| 7050 | 0.12 | 0.15 | 2.0-2.6 | 0.1 | 1.9-2.6 | 0.04 | - | 5.7-6.7 | 0.06 | Remains |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | - | 5.1-6.1 | 0.2 | Remains |
Diamond aluminium tread plate or floor plate is widely used for a
variety of structural, architectural and cosmetic applications. A
method has been developed to roll metal plates with an upraised
"lug" pattern, providing the customer with several choices to best
meet the needs of the project, with specific qualities of
cleanability, impact resistance, support strength, and corrosion
resistance
Bright Tread Plate(3003) is defined by its offset diamond shaped
alternating single bar pattern. Common applications include ramps,
toolboxes, decorative flooring or walls, vehicle running boards or
kick plates, trailers, dock surfaces, and stairways.
