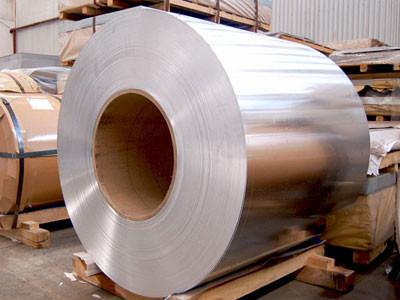

good resistance 0.2-10mm 5052 5754 5083 5086 5454 aluminium alloy
plate aluminum coils 5005 H32 H34 H36 H38 for tank
ALLOY 5052 is an aluminum alloy with magnesium as the primary
alloying element
5052 aluminum alloy plate coil and aluminum alloy sheet have good workability, high fatigue strength and good weldability.
It has very good corrosion resistance, especially in marine
environments. 5052 aluminum can be anodized to improve the
corrosion resistance of the material in corrosive environments.
5052 ALUMINUM Alloy plate coil APPLICATIONS
- Architecture
- General sheet metal
- Heat exchangers
- Marine environments
Alloy: 1050 1060 1100 3003, 3105, 5052, 5005, 5754 5083 5182, 6061
6063 6082, 7075, 8011…
Temper: HO, H111,H12, H14, H24,H 32, H112, T4, T6, T5,T651
Surface:Mill | Emboss | Diamond | 2bar | 3bars | Bright
Thickness: 0.2mm to 300mm
Width: 30mm to 2300mm
Length:1000mm to 10000mm
Both 5052-H32 aluminum and 5052-H34 aluminum are variants of the
same material. They share alloy composition and many physical
properties, but develop different mechanical properties as a result
of different processing.
5052-H32 aluminum is 5052 aluminum in the H32 temper. To achieve
this temper, the metal is strain hardened, and then stabilized, to
a strength that is roughly a quarter of the way between annealed
(O) and full-hard (H38)
RUIYI Aluminum is a professional manufacturer and supplier of 5052
aluminum plate based in China. We also offer aluminum coil, PVDF
aluminium coil, aluminum sheet, coated aluminum coil, diamond
aluminum tread plate,and more. Whenever you have a need for any of
our products, please feel free to contact us.
| Chemical Analysis of aluminum alloy Plate |
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | - | 0.05 | 0.03 | Remains |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | - | - | - | - | - | Remains |
| 1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | - | - | - | - | Remains |
| 1100 | 0.95 | 0.95 | 0.05-0.2 | 0.05 | - | - | 0.1 | - | - | Remains |
| 1200 | 1 | 1 | 0.05 | 0.05 | - | - | - | 0.1 | 0.05 | Remains |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | - | - | 0.1 | - | Remains |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.1 | - | 0.25 | - | Remains |
| 5042 | 0.2 | 0.35 | 0.15 | 0.2--.5 | 3.0-4.0 | 0.1 | - | 0.25 | 0.1 | Remains |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | - | 0.1 | - | Remains |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | - | 0.25 | - | Remains |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | - | 0.2 | - | Remains |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | - | 0.25 | - | Remains |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45 | 0.1 | - | 0.1 | - | Remains |
| 6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1.0 | 0.6-1.2 | 0.25 | - | 0.2 | - | Remains |
| 7050 | 0.12 | 0.15 | 2.0-2.6 | 0.1 | 1.9-2.6 | 0.04 | - | 5.7-6.7 | 0.06 | Remains |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | - | 5.1-6.1 | 0.2 | Remains |
