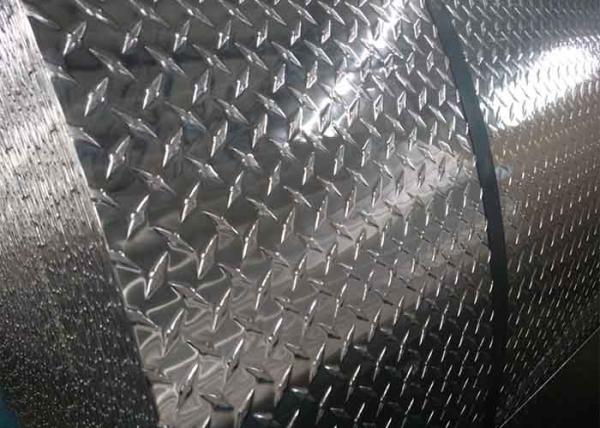

5086 Marine Grade Flat aluminum Sheet diamond plate aluminum coil
supplier
5086 aluminum diamond plate coil has higher strength than 5052 and 5083 plates. 5086 diamond
aluminum coil is particularly resistant to salt water corrosion.
Because 5086 aluminum coil is not heat treated, 5086 plate is easy
to form, stamp and weld. 5086 tread plate is used for: boat hulls,
gangways, ramps, superstructures, shipping drums, support
structures for marine applications.
5086 Aluminum tread checkered plates coils are very resilient against aggressive substances and
therefore, they regarded as indestructible. Due to their
durability, they are used in many different areas because they do
not lose their shape or look, even after a long time. Whether
industrial floors, airplanes, ships and vehicles, or stairs indoors
or outdoors -5086 aluminium checker plates are a popular material
which is appreciated for its excellent properties, the high
resilience and the low weight. Even designers use these plates due
to their decorative look.
5086 aluminum diamond sheet exhibits has excellent corrosion
resistance, making it common in marine and salt water environments
5086-H32 Aluminum Sheet is frequently found in marine applications,
with higher strength capacity than Aluminum Alloy 5052 or Aluminum
Alloy 5083.
aluminum stair tread sheet , Aluminum tread Brite plate,Aluminum
checker plate manufacturers, Perforated aluminum sheet
china,Diamond sheet manufacturers, Aluminum tread plate
manufacturers
| Chemical Analysis of aluminum alloy Plate |
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | - | 0.05 | 0.03 | Remains |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | - | - | - | - | - | Remains |
| 1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | - | - | - | - | Remains |
| 1100 | 0.95 | 0.95 | 0.05-0.2 | 0.05 | - | - | 0.1 | - | - | Remains |
| 1200 | 1 | 1 | 0.05 | 0.05 | - | - | - | 0.1 | 0.05 | Remains |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | - | - | 0.1 | - | Remains |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.1 | - | 0.25 | - | Remains |
| 5042 | 0.2 | 0.35 | 0.15 | 0.2--.5 | 3.0-4.0 | 0.1 | - | 0.25 | 0.1 | Remains |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | - | 0.1 | - | Remains |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | - | 0.25 | - | Remains |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | - | 0.2 | - | Remains |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | - | 0.25 | - | Remains |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45 | 0.1 | - | 0.1 | - | Remains |
| 6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1.0 | 0.6-1.2 | 0.25 | - | 0.2 | - | Remains |
| 7050 | 0.12 | 0.15 | 2.0-2.6 | 0.1 | 1.9-2.6 | 0.04 | - | 5.7-6.7 | 0.06 | Remains |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | - | 5.1-6.1 | 0.2 | Remains |
