Stair tread plates brite Stair Aluminium Checker Plate 3003 From
China Manufacturer
Specification details of Aluminum Checkered Plate:
Name: Aluminum Treadplate
Alloy: 3003
Temper: H12, H14, H16, H18, H22, H24, O

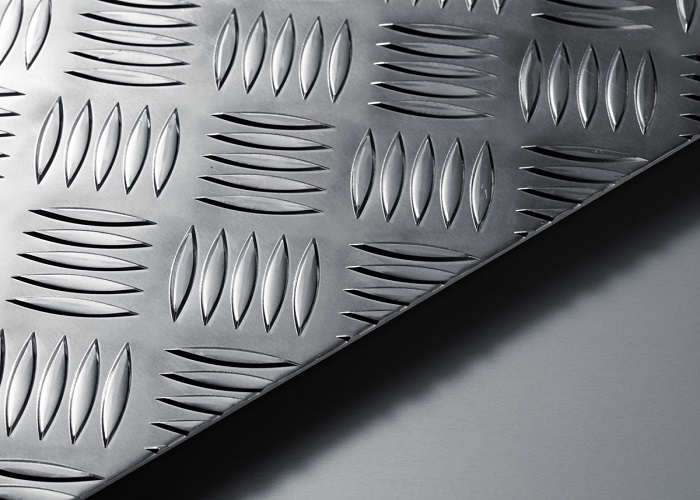

Patterns: Small 5-bar, big 5-bar, diamond(propeller)
Thickness: 1.0mm-10.0mm
Width: 500-1500mm
Length: customized
Packing: Wooden pallet, Wooden box, Veneer pallet, Veneer box.
Min Order Quantity: 3MT for each size
Delivery lead time: 25-40 days
Price term: CIF, CFR, FOB
Payment term: T/T, L/C
Loading Port: Shanghai, Qingdao, Ningbo Port
HS Code: 7606125900
Diamond Plate Stair treads are commonly used to build stairs that
do not require a concrete fill and that need an anti-slip surface
for safe foot traffic.
Diamond plate stair treads are manufactured from high quality
diamond plate, also known as checker plate
Aluminum plate stair treads are ideal for retrofitting over
existing dangerously slick flooring in applications that require a
lightweight corrosion resistant surface. Non-slip aluminum plate
stair treads are a cost-effective way to create an instantly safe
surface without completely replacing existing flooring.
Aluminum Tread Plate Features:
Light weight transport sector is required, Disassembling,
Convenient assembling,
the best comer of an aluminum alloy step. Increase the
energy-saving effect.
Aluminum Tread Plate for Anti-slip Floor Patterns:
* big 5 bars
* small 5 bars
* diamond
* 3 bar
* pointer etc.
5052 and 5083 Aluminum tread diamond sheets are very resilient
against aggressive substances and therefore, they regarded as
indestructible. Due to their durability, they are used in many
different areas because they do not lose their shape or look, even
after a long time. Whether industrial floors, airplanes, ships and
vehicles, or stairs indoors or outdoors -5052 aluminium diamond
plates are a popular material which is appreciated for its
excellent properties, the high resilience and the low weight. Even
designers use these plates due to their decorative look
SPECIFICATION:
1. Tolerance: Thickness tolerance +/-1.5%, width tolerance +/-1mm
2. Application and Usage:
Building Material, Insulation, Shoes &Tents Eyes, Corner Beads,
Automotive Industrial, POP Can Bottle and Cap, Deep-Proceeding
Case, light industry, TV back board, Street Sign, PP caps, Cell
mask and so on.
3. Surfact Quality:
Be free from Oil Stain, Dent, Inclusion, Scratches, Stain, Oxide
Dicoloration, Breaks, Corrosion, Roll Marks, Dirt Streaks and other
defect which will interfere with use,
4. Mechenical Property:
Chemical Composite and Mechanical Property could meet the
requirements of GB/T, ASTM, ENAW, JIS Standard

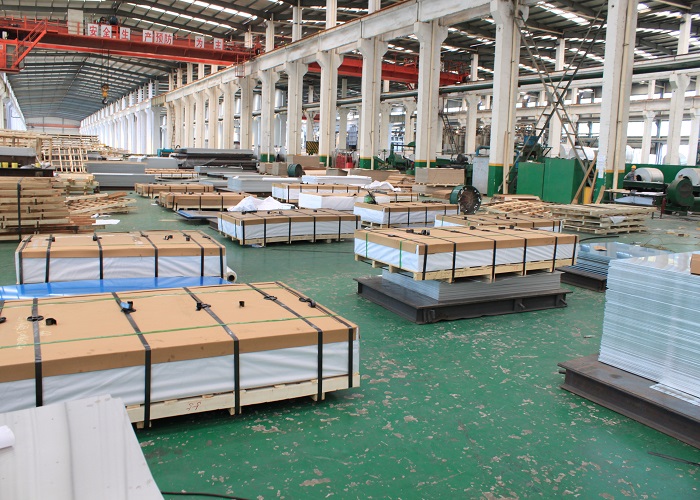

5. Packing: First, plastic cloth with drying agent inside; Second,
Pearl Wool; Third, wooden cases with dry agent, fumigation wooden
pallets, aluminum surface could cover blue PVC film
6. Certificate: ISO9001: 2008, SGS and ROHS(if client request, paid
by client), MTC(plant provided), Certificate of Origin(FORM A, FORM
E, CO), Bureau Veritas and SGS (if client request, paid by client),
CIQS certificate
7. Month Capacity: 20000MT/Month
8. Trade Terms: EXW, FOB, CIF, CNF
9. Payment: T/T or L/C at sight
| 3003 Chemistry Composition |
| Element | Si | Fe | Cu | Mn | Mg | Cr | Ti | Zn | Al |
| Standard Value | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | / | / | / | 0.10 | Balance |
| PRODUCT | ALLOY | TEMPER | THICKNESS(mm) | WIDTH(mm) | LENGTH(mm) | PATTERN | APPLICATION |
ALUMINUM
CHECKERED
PLATE | 3003 1050 5052 | H18 H24 H32 H112 O
T6 | 0.7~6.0 | 500-1500 | ≤12000 | FIVE BAR
THREE BAR
TWO BAR
ONE BAR
DIAMOND
COMPASS
GRAIN | ANTI-SLIPPERY IN BUILDING, VECHILE,SHIP,PLANE,ROOFING FOR
INNER,DECORATION,ETC. |
Aluminum tread plate, also referred to as aluminum checker plate,
stair plates was first known for it's anti-slip property as tread
plates
Aluminum Tread Plate Applications:
1] Vehicle
Characteristics and benefits: light weight transport sector is required, the best
comer of an aluminum alloy step. Increase the energy-saving effect.
Applications: checker plate floor, such as van-type vehicle catwalk flooring,
wood step of the bus or truck, train inspection hole lid, tank car,
the car cold storage.
2] Ship
Characteristics and benefits: because the excellent corrosion resistance in seawater,
requires no resistance such as repainting. It can be used with
confidence for many years.
Applications: corridor and bridges over the lid and floors, stairs, cabin deck,
fish tank,
gangway to the floating dock.
Characteristics and benefits: corrosion resistance of the step corner has been utilized
shopping and tourist attractions that require aesthetics, such as
collective for many years.
Applications: floors, stairs, shelves, such as gutter lid, the bicycle.
3] Plant
Characteristics and benefits: harmless because it is also suitable for container species,
such as facilities and chemical plants and food plant is excellent
in chemical resistance.
Applications: bench floor and stairs, equipment/ plant machinery, such as
ambulatory inspection.
| Chemical Analysis of aluminum alloy Plate |
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | - | 0.05 | 0.03 | Remains |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | - | - | - | - | - | Remains |
| 1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | - | - | - | - | Remains |
| 1100 | 0.95 | 0.95 | 0.05-0.2 | 0.05 | - | - | 0.1 | - | - | Remains |
| 1200 | 1 | 1 | 0.05 | 0.05 | - | - | - | 0.1 | 0.05 | Remains |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | - | - | 0.1 | - | Remains |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.1 | - | 0.25 | - | Remains |
| 5042 | 0.2 | 0.35 | 0.15 | 0.2--.5 | 3.0-4.0 | 0.1 | - | 0.25 | 0.1 | Remains |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | - | 0.1 | - | Remains |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | - | 0.25 | - | Remains |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | - | 0.2 | - | Remains |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | - | 0.25 | - | Remains |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45 | 0.1 | - | 0.1 | - | Remains |
| 6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1.0 | 0.6-1.2 | 0.25 | - | 0.2 | - | Remains |
| 7050 | 0.12 | 0.15 | 2.0-2.6 | 0.1 | 1.9-2.6 | 0.04 | - | 5.7-6.7 | 0.06 | Remains |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | - | 5.1-6.1 | 0.2 | Remains |
