5 Bar Aluminium Checker Plate / Aluminum Sheet Coil 0.2mm -10.0mm Thickness

Ask Lasest Price
Brand Name :	RUIYI
Model Number :	3003 3105 5052
Certification :	ISO9001, ASTM, JIS, GB, EN, ASTM
Price :	US$2100-US$2900 per ton
Supply Ability :	1000 ton per Month
Delivery Time :	25 days

Add to Cart

Product Details
Company Profile

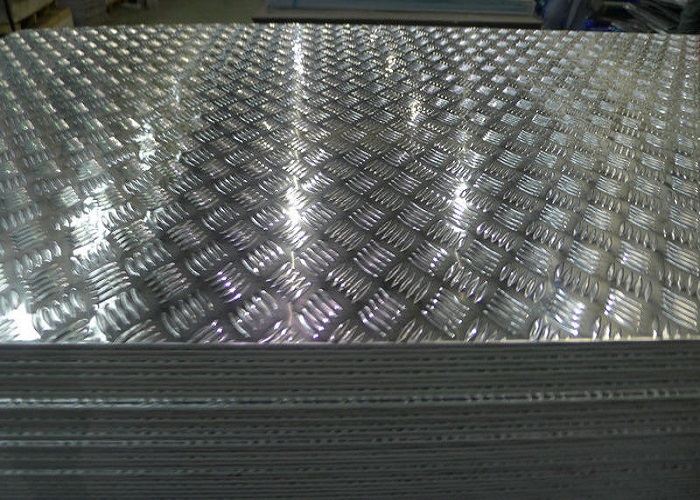

5 Bar Aluminium Checker Plate / Aluminum Sheet Coil 0.2mm -10.0mm Thickness

Diamond Alumina | Aluminio | Aluminum Checker coil Plate | Aluminium Tread Plate 5 Bar FIVE BAR

Aluminum checker plate is also called treadplates,because of its raised patterns.

Tread plate—also known as floor plate, diamond plate, or diamond tread plate—provides a durable, anti-slip surface for dock surfaces, vehicle running boards, and more. Because it is highly resistant to weathering, corrosion, and chemicals, tread plate requires no maintenance or surface treatments.

Aluminum diamond plate sheet coil, also known as aluminum checker plate, aluminium tread plate and aluminium floor plate, is a type of lightweight metal stock with a regular pattern of raised diamonds or lines on one side, with the reverse side being featureless. Aluminum diamond plates sheets coils are normally made by machine rolling, make a raised and pressed diamond design.

The added texture reduces the risk of slipping, making aluminum diamond plate sheet a solution for stairs, catwalks, walkways, and ramps in industrial settings. Its non-skid properties mean that aluminum diamond plate sheet coil is frequently used on the interior of ambulances and on the footplates of firetrucks. Additional applications include truck beds and trailer floors

Product Specification

Grace	1000 Series:1050 1060 1070 1100 1200 1235 etc	pure aluminum
	2000 Series: 2011, 2014, 2017, 2024 etc	Aluminum copper alloy
	3000 Series: 3003 3004 3005 3104 3105 3A21 etc	Aluminum manganese Alloy
	4000 Series: 4A01 4045, 4343 etc	Aluminum silicon alloy
	5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 etc	Aluminum magnesium alloy
	6000 Series: 6061 6063 6082 6A02 etc	Aluminum magnesium silicon alloy
	7000 Series: 7075, 7005.7050,ect	Aluminum magnesium silicon copper alloy
	8000 Series: 8006 8011 8079 etc	Aluminum foil alloy
Thickness	0.20-350mm
Width	2400mm max
Length	12000max
Grade	1000,3000,4000,5000,6000,7000,8000series
Temper
F	processing state
H	strain hardening state
O	annealing
T	heat treatment state
H112	pure state of strain hardening, adjustment has been made to degree of strain hardening and annealing
T4	solid solution treatment and natural efficiency to achieve sufficient stability condition
T5	artificial aging condition of the reentry after high temperature thermal cooling
T6	artificial aging state after solid solution treatment
Surface	1)Brushed aluminum 2)Printed aluminum 3)Embossed aluminum 4)Color coated aluminum 5)Anodized aluminum 6)Powder coated aluminum
Product Manufacturing
Ingot + Master Alloy → Melting → Holding Fumace → Continuous Casting → Cold Rolling(Mediate Annealing) → Horizontal shear → Annealing → Aluminum Sheet

Chemical Analysis of aluminum alloy Plate
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Al
1050	0.25	0.4	0.05	0.05	0.05	-	-	0.05	0.03	Remains
1060	0.25	0.35	0.05	0.03	-	-	-	-	-	Remains
1070	0.2	0.25	0.04	0.03	0.03	-	-	-	-	Remains
1100	0.95	0.95	0.05-0.2	0.05	-	-	0.1	-	-	Remains
1200	1	1	0.05	0.05	-	-	-	0.1	0.05	Remains
3003	0.6	0.7	0.05-0.2	1.0-1.5	-	-	-	0.1	-	Remains
5005	0.3	0.7	0.2	0.2	0.5-1.1	0.1	-	0.25	-	Remains
5042	0.2	0.35	0.15	0.2--.5	3.0-4.0	0.1	-	0.25	0.1	Remains
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	-	0.1	-	Remains
5083	0.4	0.4	0.1	0.4-1.0	4.0-4.9	0.05-0.25	-	0.25	-	Remains
5754	0.4	0.4	0.1	0.5	2.6-3.6	0.3	-	0.2	-	Remains
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	-	0.25	-	Remains
6063	0.2-0.6	0.35	0.1	0.1	0.45	0.1	-	0.1	-	Remains
6082	0.7-1.3	0.5	0.1	0.4-1.0	0.6-1.2	0.25	-	0.2	-	Remains
7050	0.12	0.15	2.0-2.6	0.1	1.9-2.6	0.04	-	5.7-6.7	0.06	Remains
7075	0.4	0.5	1.2-2.0	0.3	2.1-2.9	0.18-0.28	-	5.1-6.1	0.2	Remains
